When Patterns Start Repeating: Waterproof SPC Flooring Over On-Grade Concrete

SPC flooring has built its reputation on stability. It’s marketed as rigid, waterproof, and resistant to common dimensional issues. In controlled conditions, that holds up. In the field, however, performance depends on more than the product thickness or wear layer; it depends on the environment it’s installed into.

Over the course of the first four months of 2026, 42 qualifying inspections were conducted by me on SPC plank flooring across different homes, states, builders, installers, and manufacturers. Using AI, these failures were tracked. These were not isolated consultations or service calls. They were full flooring inspections tied to active failures, with floors described as wavy, peaking, lifting, or chipping; excluding singular complaint inspections such as scratching, gapping, and aesthetics like color, sheen, mixed lots, and pattern. The plan was to track it with AI for a year to see what was found and write a study on it, but after just a few months, it was becoming clear that there was a strong pattern, and more tracking, recording, and waiting was pointless. I had what I needed, and it was time to share it using the blog and not the study, so it might reach more retailers, installers, and consumers.

So let’s get into it.

Different products. Different installers. Different houses. Same pattern…

Once these inspections are viewed collectively rather than individually, a consistent sequence of failure becomes clear.

The first visible sign is not breakage, it’s deformation. Plank edges begin to lift, creating peaked joints that can be seen under certain lighting and felt underfoot or when dusting the floor with a flat mop or vacuum. In early stages, the floor may simply feel uneven or “soft” in spots. As the condition progresses, measurable edge curl develops.

Across these inspections, curling ranged from less than 0.015 inches to extreme cases approaching or exceeding 0.090 inches across the width of a single plank. At that level, the floor is no longer functioning as a flat, interlocked system. From here, the floor is permanently warped, and failure accelerates.

Now enter the second phase of failure. As planks curl, the locking system is placed under continuous vertical stress. Instead of distributing load across a flat surface, foot traffic is concentrated along raised edges. In high-use areas like entries, kitchens, and traffic lanes leads to progressive mechanical failure. The upper portion of the locking profile fractures, edges chip, and joints begin to move independently under load. This damage is not random. It follows the stress.

What’s equally consistent across these inspections is what isn’t being observed. Unused attic stock from the same production lots, in most cases stored within the same home laying flat, remains flat and dimensionally stable. That distinction is critical. It demonstrates that the deformation is not inherent to the product as manufactured, but develops after installation under site-specific conditions.

The common factor identified in every case was elevated moisture conditions within the concrete substrate, and no moisture barrier was present.

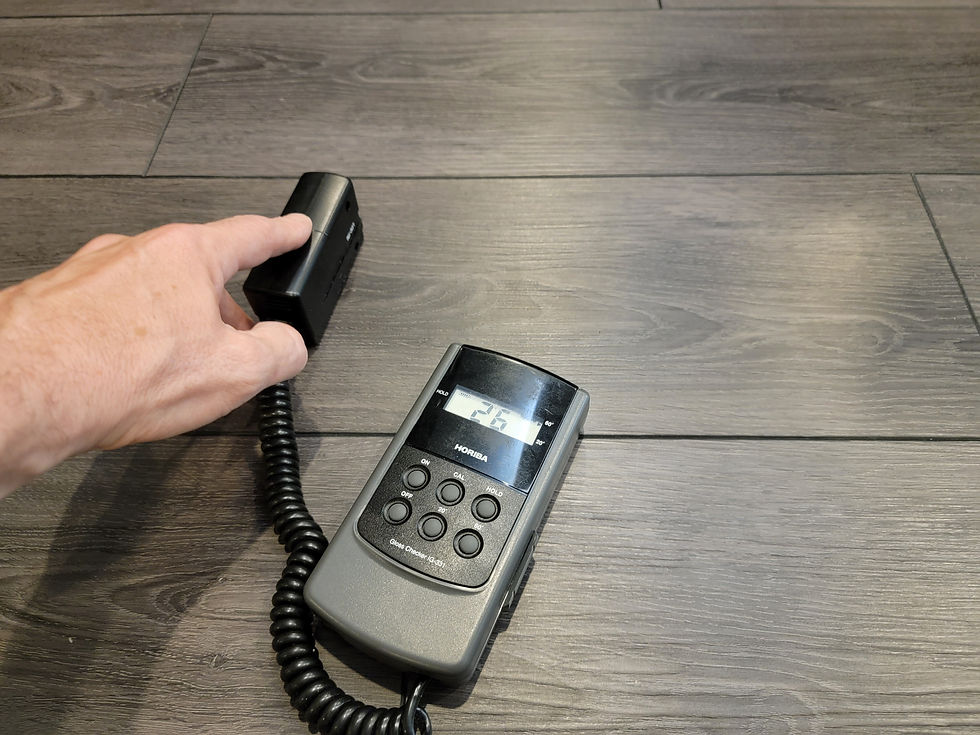

ASTM F2659 (Tramex ME5 and CME5) moisture readings taken during these inspections consistently fell outside the range typically considered acceptable for resilient flooring installation. In some homes, readings were elevated. In others, they were high to excessive. In each case, the severity of plank deformation corresponded with the level of moisture detected.

Field indicators supported the instrument readings. In multiple inspections, a mildewy odor was present when accessing open joints or lifting affected planks, indicating sustained moisture beneath the flooring.

It is important to understand that moisture testing performed at the time of installation represents conditions at that specific moment. Concrete slabs are not static systems. Moisture within a slab can redistribute over time, and once the slab is covered with flooring, the drying dynamics change. The flooring system itself can limit evaporation, allowing moisture to accumulate beneath the installation even if initial conditions were within acceptable limits.

At the same time, moisture behavior in concrete is influenced by environmental conditions, including temperature and relative humidity. Changes in these conditions can affect how moisture moves within the slab and at its surface, including the potential for moisture vapor to be absorbed or retained at the slab surface when conditions favor it.

In addition to moisture, another consistent condition was present…restricted movement. In each case, the flooring was found tight to fixed vertical surfaces like door thresholds, sliding glass doors, cabinetry, or transitions. In some installations, multiple entry points on either side of spans greater than 50-feet were fully restrained by glue, caulking, or tight fitment.

Floating floor systems are designed to accommodate slight dimensional changes within each plank or within the building itself. When that movement is restricted, the floor can buckle as internal stresses develop within the floor system. When combined with moisture-related expansion or deformation, those stresses cannot dissipate. Instead, they manifest as peaked joints, edge lift, and ultimately, joint failure.

One of the more common misconceptions encountered in these cases is that if moisture were the cause, the resulting damage would be uniform across the entire floor. Field evidence does not support that assumption. Moisture distribution within concrete slabs is rarely uniform. Variations in slab composition, curing, environmental exposure, and localized conditions all influence how moisture moves. The flooring reflects those variations, resulting in differing degrees of curling across the installation.

Another common point of confusion centers on the term “waterproof.” In the context of SPC flooring, this refers to resistance to surface water exposure during its usage life. It does not indicate immunity to dimensional change under prolonged moisture exposure from below. These inspections demonstrate that distinction clearly.

Flatness was not a primary factor in these cases, although when deviations were present, the second phase of failure in these cases progressed quicker, with the same pattern. The failures were not the result of uneven surfaces, but of conditions developing after installation.

Taken together, these early 2026 inspections do not point to a single defective product or isolated installation error. They reveal a repeatable failure pattern occurring across multiple manufacturers and installations, tied to two primary conditions:

• Elevated or changing moisture conditions within the concrete substrate

• Restriction of movement within a floating floor system

Individually, each condition can affect performance. In combination, they create a system that is unable to accommodate dimensional change, leading to progressive deformation and mechanical failure.

The takeaway here is pretty straightforward. SPC flooring can perform as intended, but it is not independent of site conditions--it's not the silver bullet. Moisture within the slab MUST be evaluated not only at the time of installation, but in terms of how it may behave once the slab is covered, and maybe just including a moisture barrier on EVERY floating installation over on-grade concrete, not only SPC. Likewise, movement allowances are not optional; they are mandatory and fundamental to the performance of ANY floating system.
